Heavy ac motor with SEMC brand
AC Motor
An AC induction motor is an electric motor driven by an alternating current (AC). The AC motor bmr motor commonly consists of two basic parts, an outside stator having coils supplied with alternating current to produce a rotating magnetic field, and an inside rotor attached to the output shaft producing a second rotating magnetic field. The rotor magnetic field may be produced by permanent magnets, reluctance saliency, or DC or AC electrical windings.
SPECIFICATIONS:-
- Type YKK
- Rated O/P Power 5000 Kw
- Mount IMB3
- rated voltage 11000 V
- number of phases 3
- Frequency 50 Hz
- Duty S1
- Power factor 0.85
- Insulation class F
- Cooling Method IC411
- Degree Of protection IP55
Contact us
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Email: robin@semcgroup.com
More To Know About Our Three Phase AC Motors
1800 KW Three Phase Induction Motor
1800 KW Three Phase Induction Motor
1800 KW Three Phase Induction Motor

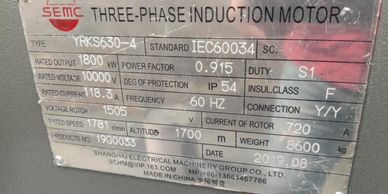

This is the name plate of Three Phase ac induction motor made by our company SEMC.
ac motor specifications are given below.
- Type YRKS630-4
- rated power 1800 KW
- Rated voltage 10000 V
- Altitude 1700
- Duty S1
- power factor 0.915
- connection Y/Y
- Frequency 60 Hz
- Current of rotor 720 A
- We hot sales bmr motor from shanghai china
1400 KW Ac Motor
1800 KW Three Phase Induction Motor
1800 KW Three Phase Induction Motor

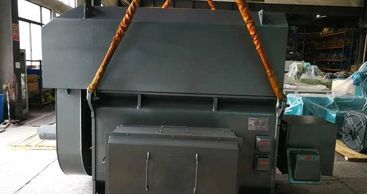

SEMC produce and hot sale ac motor ac induction motor bmr motor from shanghai china to all of the world
The specifications are given below.
- Type YRKK2-560-6
- Rated O/P Power 1400 Kw
- power factor 0.89
- rated voltage 11K v
- number of phases 3
- Frequency 50 Hz
- Duty S1
- Rated speed 980 r/min
- Pole 6
1250KW Three Phase Induction Motor
1800 KW Three Phase Induction Motor
1250KW Three Phase Induction Motor

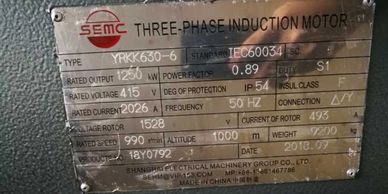

This is the name plate of Three Phase induction ac motor made by our company SEMC ac induction motor and bmr motor specifications are given below.
- Type YRKK630-6
- Rated O/P Power 1250 Kw
- power factor 0.89
- rated voltage 415 v
- rated current 2026 A
- Frequency 50 Hz
- current of rotor 493 A
- Rated speed 990 r/min
- Altitude 1000 m
THREE-PHASE ASYNCHRONOUS MOTORS
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS
1250KW Three Phase Induction Motor

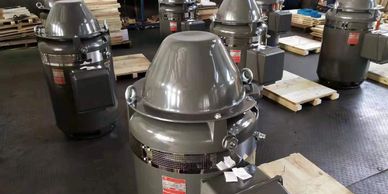

INTRODUCTION: ac induction motor bmr motor series medium size low voltage and high voltage three phase asynchronous vertical hollow shaft ac motors.
No. HP Speed Model match
1 7.51 760 VHS215-4-07.5P 2 10 1750VHS215-4-010p 3 15 1760 VHS254TP-4-015P 4 20 1760 VHS256TP-4-020p 5 25 1760 VHS284TP-4-025P 6 30 1755 VHS286TP-4-030P 7 40 1775 VHS324TP-4-040P 8 50 1770 VHS326TP-4-050P 9 60 1775VHS364TP-4-060P 10 75 1775 VHS365TP-4-075P 11 100 1765 VHS404TP-4-100P 12 125 1775 VHS405TP-4-125P 13 1501 780 VHS444TP-4-150P 14 175 1780 VHS444TP-4-175P 15 200 1780 VHS445TP-4-200P 16 250 1800 VHS445TP-4-250P 270 1800 17 3001800 VHS447TP-4-300P 18 3001800 VHS5006TP-4-300P 19 350 1800 VHS5006TP-4-350P 20 400 1800VHS5008TP-4-400P 21 450 1800 VHS5008TP-4-450P 22 5001 800 VHS5008TP-4-500P 23 700 1800 VHS5806TP-4-700P
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS

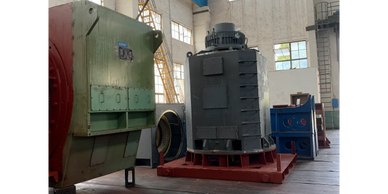

Vertical YLB type ac induction motor and bmr motor specifications are given below.
- Ac motor Type YLB-560-6
- Rated O/P Power 1000 Kw -5000kw
- Mount VMB3
- rated voltage 11K v
- number of phases 3
- Frequency 50 Hz /60Hz
- Duty S1
- Rated speed 980 r/min
- Pole 6
1120KW Y2 Series AC Motor
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS
1000 KW THREE-PHASE ASYNCHRONOUS MOTORS
.

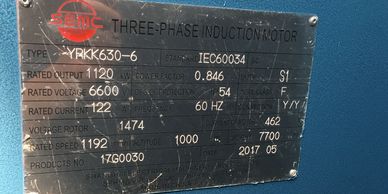

Below are the specifications of given AC motor ac induction motor bmr motor produce by our company SEMC.
- Type YRKS630-6
- rated power 1120 KW
- Rated voltage 6600 V
- Altitude 1000
- Duty S1
- power factor 0.846
- connection Y/Y
- Frequency 60 Hz
- Rated Current 122 A
