We Produce High Efficiency DC Motors For Industrial Use Such a Rolling Mills / Steel Mills Etc.

This DC Motor is working to steel mill rolling mill with high torque

Direct Current Motor

DC Motor Manufacture by SEMC Group widely use in Rolling mill, Steel mill other types of mills.

DC Motor Type : Z560-3B Standard : JB/T9577

docteur moteur Rated Power : 1000KW

dc electric motor Rated Voltage : 660V

Rated Current : 1621A

Rated Speed : 700 r/m

Speed with field weakning : 1300 r/m

Insulation Class :H

Exciting Voltage : 220/110 V

Exciting Current : 27.6 / 55.2A

Excitation : Separate

Duty type : S1

Cooling Method : ICW37A86

Protection Grade : IP54

Weight : 7800kg

Contact us

Mobile： +86-13661649038

Phone： +86-21-60484485

Fax ： +86-21-60484085

We Chat: +86-13661649038

What App: +86-13661649038

Email: robin@semcgroup.com

shanghaielectric@vip.163.com

Back homepage to see all products

More to know about DC Motors

High Efficiency DC Motor

High Efficiency DC Motor

High Efficiency DC Motor

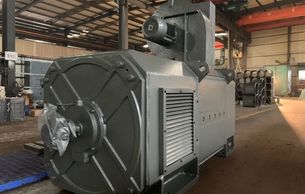

Picture of DC Motor Manufacture by SEMC Group of widely use in Rolling mill, Steel mill other types

DC Motor Type : Z450-3B Standard : JB/T9577

dc electric motor Rated Power : 400KW
docteur moteur Rated Voltage : 660V
Rated Current : 650A
Rated Speed : 600 - 1500 r/m
Insulation Class :H
Exciting Voltage : 220/110 V
Exciting Current : 22 / 44A
Excitation : Separate
Duty type : S1
Cooling Method : ICW37A86
Protection Grade : IP54
Installation : IMB3
Weight : 5000kg

Nameplate DC Motor

High Efficiency DC Motor

High Efficiency DC Motor

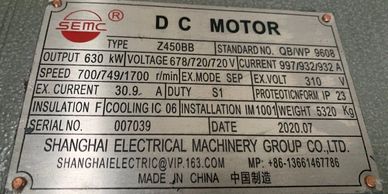

DC Motor Manufacture by SEMC Group widely use in Rolling mill, Steel mill other heavy machine steel

DC Motor Type : Z450BB Standard No. QB/WP 9608

Rated Power : 630KW
Rated Voltage : 678 / 720 v
docteur moteur Rated Current : 997/ 930 / 932 A
Rated Speed : 700 - 1700 r/m
Excitation Mode : Separate
dc electric motor Excitation Voltage : 310v
Excitation Voltage : 30.9A
Duty : S1
Protection Grade : IP23
Insulation : F
Cooling : IC06
Installation : IM1001
Weight : 5320kg

Display DC Motor

High Efficiency DC Motor

Side View of DC Motor

DC Motor Type : Z560-3B produce by shanghai electric machinery group made in china or manufacturer i

DC Motor Type : Z560-3B Standard No. JB/T9577

Rated Power : 600KW
Rated Voltage : 750v
Rated Current : 1146A
dc electric motor Rated Speed : 500-1000r/m
Excitation Mode : Separate
Excitation Voltage : 310v
Excitation Voltage : 34.3A
Duty : S1
Protection Grade : IP54
Insulation : F
docteur moteur Cooling : ICW37A86
Installation : IM1001
Weight : 7650kg

Side View of DC Motor

310KW DC Motor Nameplate

Side View of DC Motor

China Flameproof dc motor type : Z480-3B
Rated Power : 800KW Rated Voltage : 720v made in china

DC Motor Type : Z480-3B Standard No. JB/T9577

docteur moteur Rated Power : 800KW
Rated Voltage : 720v
Rated Current : 1150A
Rated Speed : 1400r/m
Excitation Mode : Separate
Excitation Voltage : 220/110v
Excitation Voltage : 26A
Duty : S1
dc electric motor Protection Grade : IP23
Insulation : F
Cooling : ICW37A86
Installation : IM1001
Weight : 7650kg

310KW DC Motor Nameplate

310KW DC Motor Nameplate

310KW DC Motor Nameplate

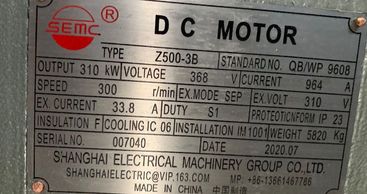

China dc motor Type : Z500-3B Standard No. JB/T9577
Rated Power : 310KW
Rated Voltage : 368v

DC Motor Type : Z500-3B Standard No. JB/T9577

Rated Power : 310KW
Rated Voltage : 368v
Rated Current : 954A
Rated Speed : 300r/m
Excitation Mode : Separate
Excitation Voltage : 310v
Excitation Voltage : 33.8A
Duty : S1
Protection Grade : IP23
dc electric motor Insulation : F
Cooling : IC06
docteur moteur Installation : IM1001
Weight : 5820kg

High Efficiency

310KW DC Motor Nameplate

310KW DC Motor Nameplate

Dc electric motor exposition proof motor supplier by shanghai electrical machinery group co ltd bran

DC Motor Type : Z500-3B Standard No. JB/T9577

docteur moteur Rated Power : 310KW
Rated Voltage : 368v
Rated Current : 954A
Rated Speed : 300r/m
dc electric motor Excitation Mode : Separate
Excitation Voltage : 310v
Excitation Voltage : 33.8A
Duty : S1
Protection Grade : IP23
Insulation : F
Cooling : IC06
Installation : IM1001
Weight : 5820kg
