SEMC group produce premium efficiency flameproof motor explosion proof motors;Heavy AC/DC motor for steel mill and heavy industrial.
Flameproof motor is a type of motor which can be use in flammable and explosive places, and does not generate electric sparks during operation. Flameproof motors are mainly used in coal mines, oil and gas, petrochemical and chemical industries. In addition, it is also widely used in textile, metallurgy, urban gas, transportation, marine and oil processing, paper making and others

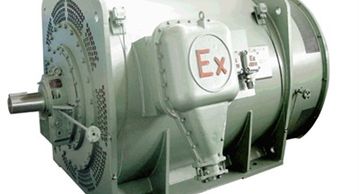

Flameproof Three-Phase Asynchronous Motors of YB2 series (factory and mining); flameproof three-phase asynchronous motors for mines such as YBS, YBK2, YBF2, YBD2, YBGB2, YBPT, YBJ; Y, YKK, YKS (6KV, 10KV), H355-H800 high-voltage marine use three-phase asynchronous motor; YR, YRKK, YRKS (6KV, 10KV), H355-H710 embedded marine use high-voltage three-phase asynchronous motor; YB H355-H1500 series high-voltage medium-sized flameproof Three-Phase Asynchronous Motor 6KV, 10KV); T, TL, TK series synchronous motors and TAW increased safety explosion-proof synchronous motors (6KV, 10KV) and other 50 varieties
Rated Power: 160 ～ 25000Kw
Number of poles: 2-24
Rated Voltage: 220 ～ 11000V
Rated Frequency: 50HZ, 60HZ

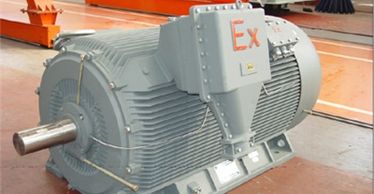

Flameproof Grade : Exd I Mb, Exd II AT4 Gb, Exd II BT3 Gb, Exd II BT4 Gb
Explosion-Proof Grade Exe II T1, Exe II T2, Exe II T3
Protection level: IP44, IP54, IP55, IP56
Duty Type: S1(continuous) , Connection Type: Star, Delta
Cooling method: IC511, IC516, IC611, IC616, IC666, IC81W, IC86W
Company policies – Kindly contact us to get quotation for this motor or know more about this special motor. Please find out contact details.
Contact Us:
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Email: robin@semcgroup.com
China Explosion Proof Motors Flameproof Motor Manufacturer
Picture of Flameproof Motor
Picture of Flameproof Motor
Picture of Flameproof Motor
Three-Phase Flameproof Motor :
- Asynchronous Motor
- Rated Power=45KW
- Voltage= 380V/400V/415V
- Rated Speed= 1485 RPM
- Frequency= 50Hz
- Number Of Phases=3
- Class =F, P.F = 0.86
- Degree Protection: IP55
- Explosion Proof mark= ExdIIBT4
- Duty : S1(Continuous)
- Altitude from Sea Level = 1000m
High Efficiency Flameproof
Picture of Flameproof Motor
Picture of Flameproof Motor
High Efficiency Flame-Proof Three-Phase Induction Motor
- Type: YBX3-180L-4
- Rated Power=22KW
- Voltage= 400V
- Rated Speed= 1480 RPM
- Frequency= 50Hz
- Number Of Phases=3
- Class =F, P.F = 0.86
- Degree Protection: IP55
- Explosion Proof mark= ExdIIBT4
- Altitude from Sea Level = 1000m
Display Flameproof
Picture of Flameproof Motor
FlameProof Nameplate

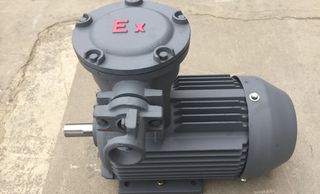

High efficiency LV Flameproof electric motor. It has 100% copper winding and it has iron cast where "Ex" is a symbol of flameproof motor.
Insulation class F, Duty S1
FlameProof Nameplate
High Voltage Flameproof
FlameProof Nameplate
High Efficiency Flame-Proof Three-Phase Induction Motor
- Motor type= YBX3-315-6
- Rated power = 90KW
- Rated speed = 1000-1200 RPM
- Rated voltage = 440volt
- Rated Current = 145A
- Rated frequency = 60 Hz
- Protection level = IP 55
- Insulation class = F
- Duty = S1 (Continous)
- Explosion-proof grade = ExdⅡBT4
- Power Factor = 1.8
- Weight = 987kg
- Noise pressure level at 1mt at full load= 85DB
High Voltage Flameproof
High Voltage Flameproof
High Voltage Flameproof
Motor's specifications are mentioned below:
- Motor type= YBXKK-900
- Rated power = 3200KW
- Rated speed = 3000 RPM
- Rated voltage = 11000volt
- Rated frequency = 50 Hz
- Protection level = IP 55w
- Insulation class = F
- Cooling method = IC 511
- Rated efficiency = 96.2%
- Explosion-proof grade = ExdⅡBT4
- Noise pressure level at 1mt at full load= 85DB
- Amb.Temperature= 55℃
Display HV Flameproof
High Voltage Flameproof
High Voltage Flameproof
HV Three-Phase FlameProof Motor,
- Iron Cast,
- 100% Copper Winding,
- Premium motor.
- Star- Delta connection,
- Blast proof motor
