China AC/DC/Asynchronous motor Vertical Motors vhs motors manufacturers
Vertical Motors Medium and Large Sized, LV and HV
vertical electric motor Power : 100HP-1000HP; 1200HP-5000HP,10MW-100MW.
JK, JS, JR, JS2, JR2, JSL, JRL series are medium-sized vertical motors use to drive a variety of different machinery, such as fans, compressors.
VHS motors YL and YLB series high Voltage 6KV up to 20kV large vertical large thrust three-phase asynchronous motors are our company main production using domestic and foreign advanced technology, with over decades of practical experiences and in accordance with international standards, national standards and industries A series of optimised products developed as standard.
Type of Installation : Flange Type
Rated Voltage : 6000V, Rated Power : 560KW
Rated Speed : 1500 RPM, Insulation Class : F
Duty Cycle : S1 (Continuous)
Type of Starting : DOL
FRAME SIZE : *
Type of Construction : IMV6 IM1031 OR IMV1 OR B5
Degree of Protection : IP55
Ambient temperature : -20 to +50 º Celsius
attitude max. :1000 m
This series of motors can be used directly on 10kV power grids, which has the advantages of simplifying equipment, saving investment, reducing energy consumption and so on.
Contact us
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Email: robin@semcgroup.com
More to know about Vertical Motor

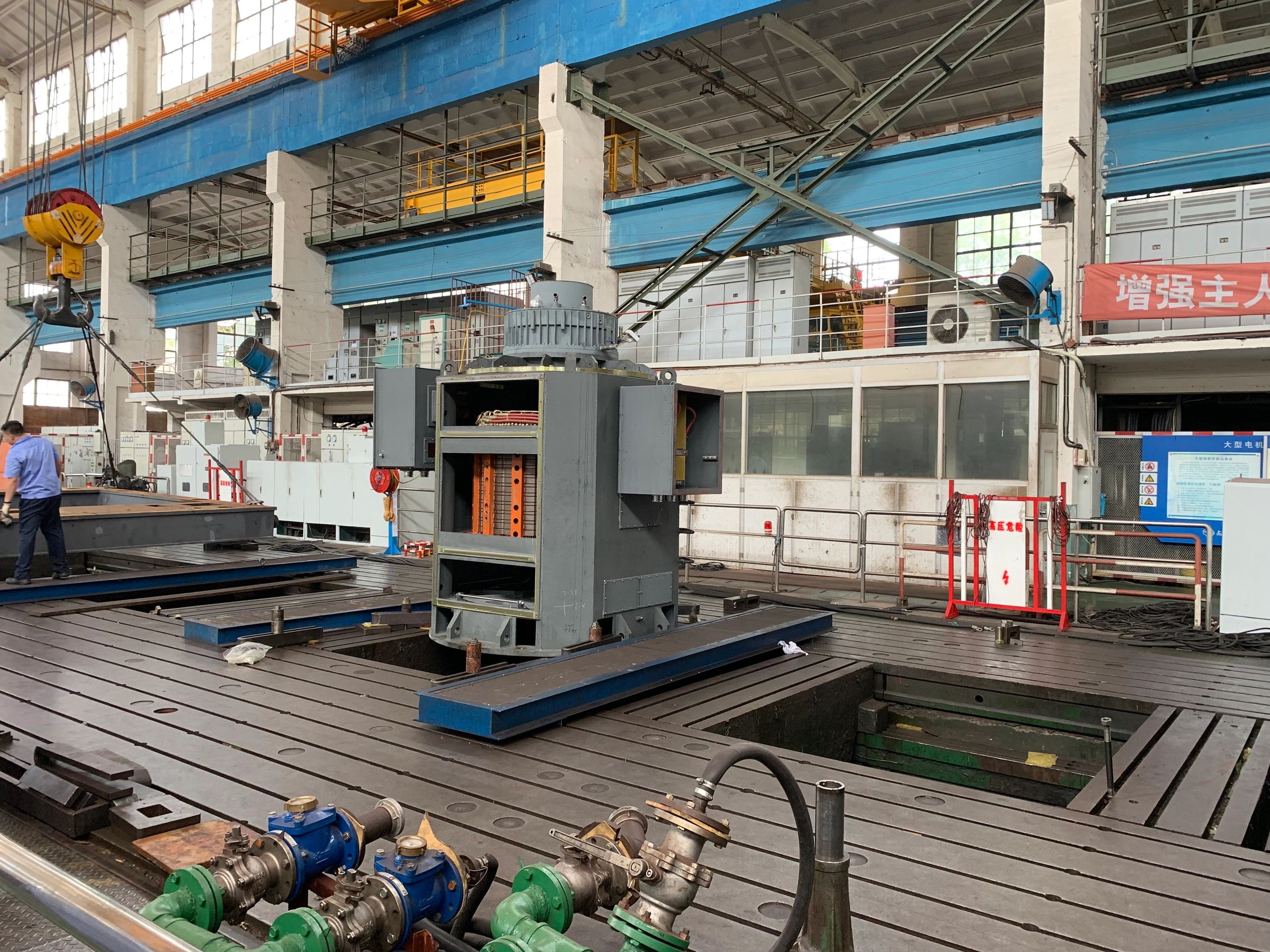

3770KW, 6.6kV Vertical Motor
3770KW, 6.6kV Vertical Motor
3770KW, 6.6kV Vertical Motor
Vertical motor Motor Type / Specifications
Motor Type : Squirrel Cage vertical electric motor Applicable Standard : IEC 60034
Efficiency Class : Vendor Standard
Rated Output (kW) : 3770 Number of Poles : 18
Motor Rated Speed (rpm) : 390
Vhs motors Rated Voltage (V) : 6.6kV +/- 10%
Supply Frequency (Hz) : 60 +/- 10%
Phases : 3Ph, Duty Type : S1 (Continuous)
Service Factor : 1, Insulation Class Stator : F
Temperature Rise : B, Starting Method : DOL
Starting Current Limit : 5.5 times rated
Consecutive Starts : 4 Cold, 3 Hot
Connection of Stator Winding : Star
Mounting : IM3011, No. of Shafts :1
Degree of Protection (Motor) : IP65
Degree of Protection (T / Box) : IP65
Hazardous Area Protection : Ex N/A
Cooling Method : IC411
Cooler Type : Totally Enclosed Fan Cooled

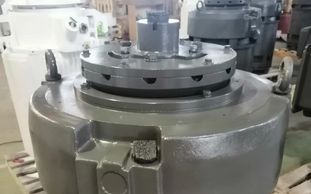

Vertical Hollow Shaft Motor
3770KW, 6.6kV Vertical Motor
3770KW, 6.6kV Vertical Motor
NEMA vertical electric motor stand IP23/WP-1
- 60HZ/440V/NEMA/Class F/IP23/Dark Grey/Working Altitude<1000meter.
- Note: vertical motor Ball type of anti-reverse,BD and BX size can produce according required,but we will produce vhs motors according our catalog if you do not supply size .
- Packing: Plywood Shipment: By sea.

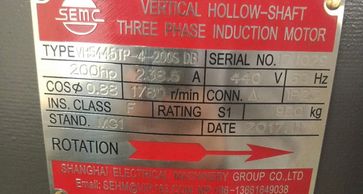

Nameplate Of VHS
3770KW, 6.6kV Vertical Motor
Nameplate Of VHS
- VHS Motor specifications
- Vertical electric motor Power: 200HP
- Vertical motor Current= 218.5A
- vhs motors Voltage= 440V
- Frequency= 50Hz
- P.F= 0.88
- Insulation Class= F
- Duty= S1
- Speed= 1780rev/min
- Delta Connection
- Weight : 980kg

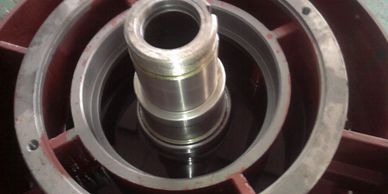

Shaft of VHS

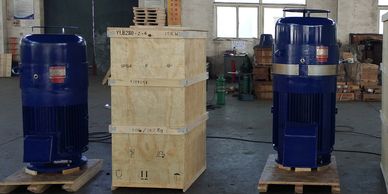

VHS Motors Packing
Nameplate Of VHS
VHS Motor specifications
Testnorm : ISO9906:2012,HI 11.6/14.6 Gr1B
- Vertical motor Power: 132 KW ,
- Current= 210.5A
- Vertical electric motor Voltage= 400V,
- Number of vhs motors Poles : 8
- Frequency= 50Hz ,
- Power factor= 0.88
- Insulation Class= F, Duty= S1
- Speed= 750rev/min
- Degree of Protection : IP55
- Delta Connection,
- Weight : 680kg
VHS Motors Packing
VHS Motors Packing
VHS Motors Packing
VHS Motor vertical electric motor specifications
- Vertical motor Power: 175HP
- Current= 210.5A
- Voltage= 440V
- Vhs motors Frequency= 60Hz
- Power factor= 0.88
- Insulation Class= F
- Duty= S1
- Speed= 1780rev/min
- Delta Connection
- Weight : 680kg

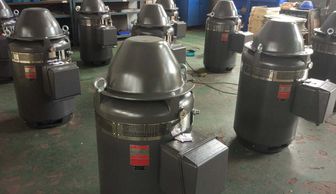

Vertical Motors
VHS Motors Packing
VHS Motors Packing
Vertical electric motor Specifications: 75 HP, vertical motor three phase, 100%cooper winding, iron Cast, 1775 rpm, model: VHS365TP-4-075S, premium efficiency vhs motors SEMC brand motor.
