Continuous Casting Machine (CCM)
Continuous Casting Machine
Our company is specialised in producing Metallurgical Equipment, Vertical and Horizontal Continuous Casting Machine (design according to Italian DANIELI CCM OEM factory).
Our Casting Machine series were awarded as one of "China's Top Ten Brands of the well-known Continuous Casting Machine” , and passed the ISO9001:2008 standard certification. Our CCM are equipped with the PLC control, they are more energy-saving, environmental protection.

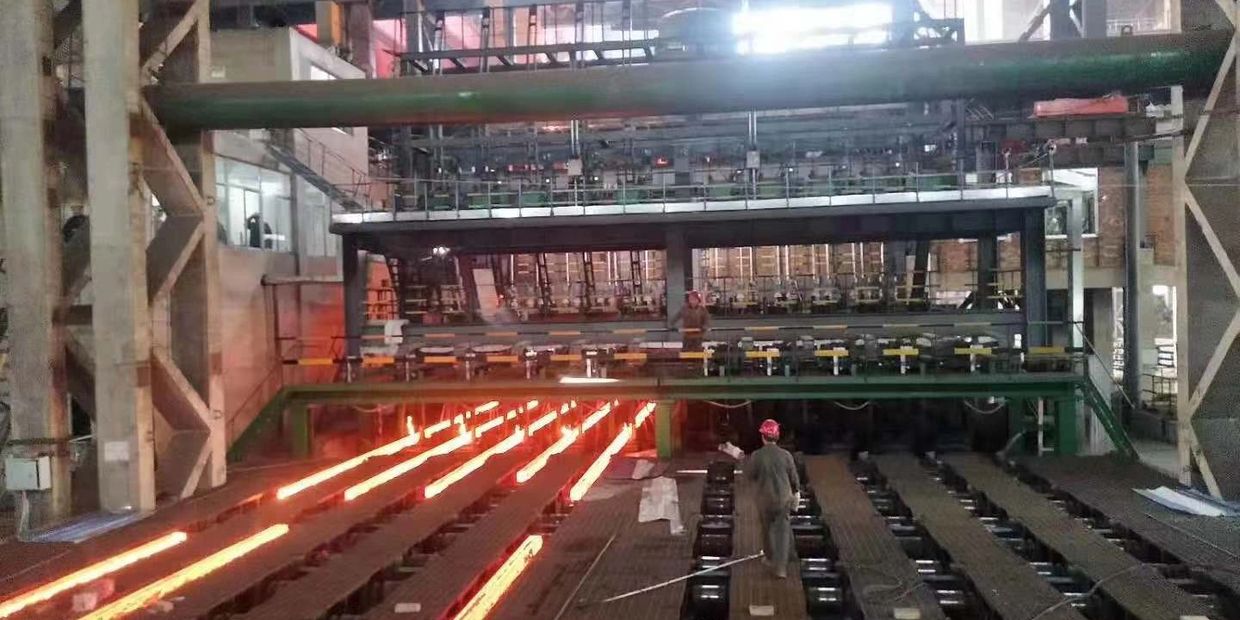

Above Picture R9m 6strands billets continuous casting machine
Technical data
- Capacity per hour: 150ton –240ton/hour
- Casting radius: R9m
- Billet specification: 130*130mm,150*150,180X180mm,200*200mm，,220*220mm,240*240mm
- Strand number: strands 6 strands
- Dummy bar : rigid dummy bar
- Ladle support type: Ladle rotor tower
- Cutting way: automatic flame cutting machine
- Steel grade: Square billets :low alloy steel, common steel, and so on,Round billets : Alloy Steel.
- Billet length:6-12m
- Electrical system: SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER Contractors . PLC automatic controlling
Mostly Our CCM Products are exported to consumer countries such as Italy, Philippines, Indonesia, Mongolia, Kazakhstan, Malaysia, Ukraine, Honduras, Iran, Zambia, Nigeria ,Myanmar, Vietnam, Syria, Angola, etc. We produce and sale various metallurgical equipments more than 100 sets yearly.
Contact Us:
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Skype: robinyan.china
Know more about CCM
R9m 6strands Billets CCM
R4m 1strands Billets CCM
R4m 1strands Billets CCM
Technical data
- Capacity per hour: 150ton –240ton/hour
- Casting radius: R9m
- Billet specification: 130*130mm,150*150,180X180mm,200*200mm，,220*220mm,240*240mm
- Strand number: strands 6 strands
- Dummy bar : rigid dummy bar
- Ladle support type: Ladle rotor tower
- Cutting way: automatic flame cutting machine
- Steel grade: Square billets :low alloy steel, common steel, and so on,Round billets : Alloy Steel.
- Billet length:6-12m
R4m 1strands Billets CCM
R4m 1strands Billets CCM
R4m 1strands Billets CCM
Technical data
- Capacity per hour : 10t-20t
- Casting radius : R4m
- Billet specification : 100*100mm, 120x120mm, 125x125mmx6meter-12meter
- Strand number : strands 1 strands
- Dummy bar : rigid dummy bar
- Ladle support type : Fix steel frame support
- Steel grade : low alloy steel, common steel, and so on
- Billet length : 6m-12m
R6m 2strands billets CCM
R4m 1strands Billets CCM
R10m 4strands Billets CCM
Technical data
- Casting radius: R6m
- Billet specification: 100*100,125*125,130*130, 150*150mm
- Strand number: strands 2 strands
- Dummy bar: rigid dummy bar
- Ladle support: Ladle Rotor Tower/Ladle moving car
- Cutting way: automatic hydraulic cutting machines/Flame cutting machine
- Electrical system: SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER contactors . PLC automatic controlling
R10m 4strands Billets CCM
R10m 4strands Billets CCM
R10m 4strands Billets CCM
Technical data
- Capacity per hour : 60-150ton/hour
- Casting radius : R10m
- Billet specification : 150*150, 180X180mm, 200*200mm, 220*220mm
- Strand number : strands 4 strands
- Dummy bar : rigid dummy bar
- Ladle support type : Ladle Moving car
- Cutting way : automatic flame cutting machine
- Steel grade : Square billets : low alloy steel, common steel, and so on,
- Round billets : Alloy Steel.
- Billet length : 6-12m
- Electrical system : SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER contractors. PLC automatic controlling
R8m 4strands Billets CCM
R10m 4strands Billets CCM
R8m 4strands Billets CCM
Technical data
- Capacity per hour : 60-100ton/hour
- Casting radius : R8m
- Billet specification : 150*150, 180X180mm, 200*200mm, 220*220mm
- Strand number : strands 4 strands
- Dummy bar : rigid dummy bar
- Ladle support type : Ladle Moving car
- Cutting way : automatic flame cutting machine
- Steel grade : Square billets : low alloy steel, common steel, and so on,
- Round billets : Alloy Steel.
- Billet length : 6-12m
- Electrical system : SIEMENS/DELTA Transducer, SIEMENS/DELTA PLC, SCHNEIDER contractors. PLC automatic controlling
Display Panel
R10m 4strands Billets CCM
R8m 4strands Billets CCM
Electrical Panel For CCM
Details : SIEMENS / DELTA Transducer,
SCHNEIDER Contractors. SIEMENS / DELTA PLC Automatic Controlling
