Shanghai electrical group produce vhs motor vertical deep well pump motor

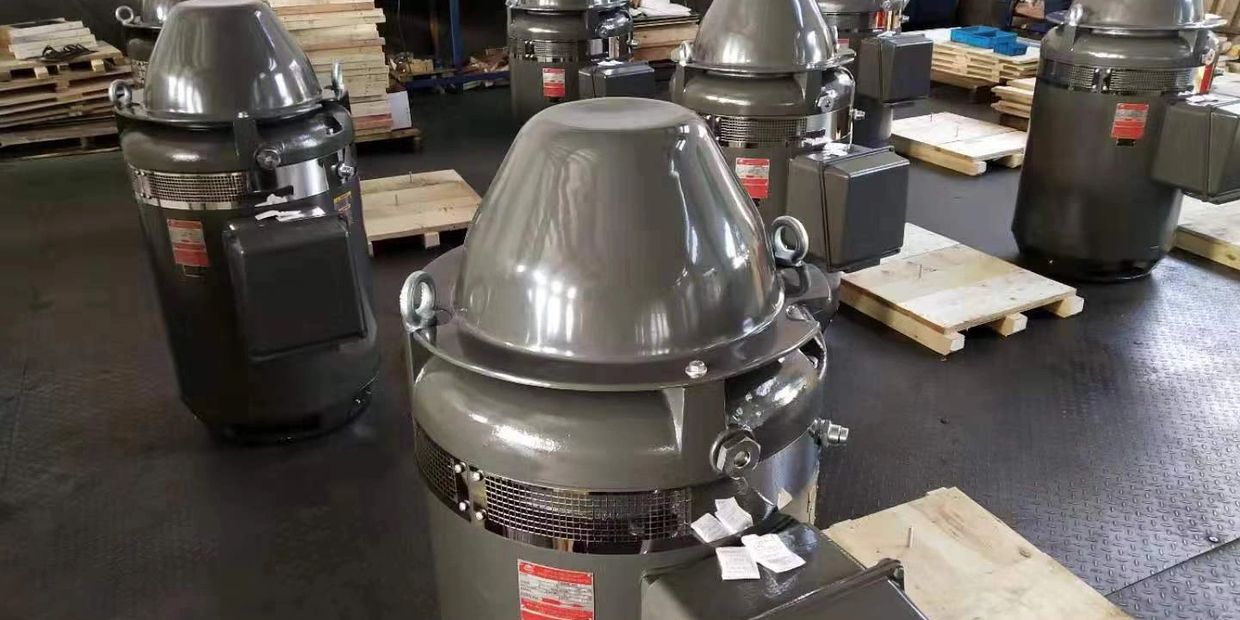

Vertical hollow shaft motor
- Deep well pump motor ,vhs motor and water pump work directly: It is suitable for extracting groundwater from deep wells, and can also be used for rivers, reservoirs, canals and other water-lifting projects: vertical electric motor mainly used for farmland irrigation and water for humans and livestock in plateau and mountainous areas, as well as cities, factories, railways , Mine, construction site for drainage. Deep well pumps and deep well pump motors vertical motor with high safety and reliability have also become the first choice
- 50/60HZ/230/440V/460V/10kv/20kv,NEMA/Class F/IP23/IP54/IP55
- Dark Grey/Working Altitude1000meter-2000meter
- Note:Ball type of anti-reverse,BD and BX size can produce according required,but we will produce according our catalog if you do not supply size .
- power: 10hp-800hp 1000hp-5000hp
- VHS215-4-07.5S VHS215-4-010S VHS254TP-4-015S VHS256TP-4-020S
- VHS284TP-4-025S VHS286TP-4-030S VHS324TP-4-040S VHS326TP-4-050S
- VHS364TP-4-060S VHS365TP-4-075S VHS404TP-4-100S VHS405TP-4-125S
- VHS444TP-4-150SVHS444TP-4-175S VHS445TP-4-200S
- VHS445TP-4-250S VHS447TP-4-300S VHS5006TP-4-300S
- VHS5006TP-4-350S VHS5008TP-4-400S VHS5008TP-4-450S VHS5008TP-4-500S
Contact us
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Skype: robinyan.china
Email: robin@semcgroup.com
vhs motor
200HP VHS Motor
300 HP VHS Motor
200HP VHS Motor
- Vertical electric motor specifications
- Extra High thrust UL labeled with Premium Efficiency Value on the Nameplates,Torque Motor SEMC brand Light Gray Color with Coupling Nema Frames None Reversing Ratchets, Spike Resistant VFD Winding, thermistors and Space heaters Grounding Rings on Bottom Bearing Cap!
- 6 Leads or 12 Lead 230/460 Volt Part Winding 60hz
NEMA VHS MOTOR
300 HP VHS Motor
200HP VHS Motor
- VHS MOTOR, NEAM standard,
- vertical motor model:VHS445TP-4-200s 200HP
- Extra High thrust UL labeled with Premium Efficiency Value on the Nameplates, Torque Motor SEMC ,Light Gray Color with Coupling Nema Frames
- None Reversing Ratchets, Spike Resistant VFD Winding, thermistors and Space heaters Grounding Rings on Bottom Bearing Cap!
12 lead Dual Voltage 230 /460 Volt
- Export to USA,MEXICO,Europe.
300 HP VHS Motor
300 HP VHS Motor
300 HP VHS Motor
- vertical hollow shaft electric motor
- Extra High thrust UL labeled with Premium Efficiency value on the Nameplates,Torque Motor SEMC , Light Gray Color with Coupling Nema Frames None Reversing Ratchets, Spike Resistant VFD Winding, thermistors and Space heaters Grounding Rings on Bottom Bearing Cap!
6 Leads 460 Volt Part Winding
- premium efficiency vertical motor
500 HP VHS Motor
Shaft Of 800 HP VHS motor
300 HP VHS Motor
- Vertical hollow shaft fire motor 500 HP, three phase,
- vhs motor 100%cooper winding, iron Cast, 1780 rpm,
- model: VHS444TP-4-500S ,
- premium efficiency vertical electric motor
- Extra High thrust UL labeled with Premium Efficiency Value on the Nameplates,
- Torque Motor SEMC Light Gray Color with Coupling Nema Frames
- None Reversing Ratchets, Spike Resistant VFD Winding, thermistors and Space heaters
- Grounding Rings on Bottom Bearing Cap!
175hp vhs motor
Shaft Of 800 HP VHS motor
Shaft Of 800 HP VHS motor
- TEFC VHS Motor specifications
- vertical electric motor Power: 50HP 60HP 75HP 100HP 150HP 175HP 200HP 250HP 300HP 350HP 400HP
- Insulation Class= F
- Duty= S1
- Speed= 1780rev/min
- 12 lead Dual Voltage 230 /460 Volt
- Spike Resistant VFD Winding, thermistors and Space heaters Grounding Rings on Bottom Bearing Cap!
- Extra High thrust UL labeled with Premium Efficiency
Shaft Of 800 HP VHS motor
Shaft Of 800 HP VHS motor
Shaft Of 800 HP VHS motor
- Vertica hollow shaft YLB motor Specifications:
- Type: YLB-280-4 300hp
- Voltage= 380v
- Frequency= 50Hz
- P.F= 0.92
- vertical electric motor Insulation Class= F Duty= S1
- Speed= 1450rpm/min
- Current: 38/7223 A
- Protection : IP23
- STAND: IEC60034-1
- EFFICTENCY: 96 %
- Made in china
