We produce metallurgy equipments, Furnace Transformers, shot blasting machine, for steel mill factor

Steel mill factory

Main Equipments :-

Transformer :-

 A transformer is defined as a passive electrical device that transfers electrical energy from one circuit to another through the process of electromagnetic induction. It is most commonly used to increase (‘step up’) or decrease (‘step down’) voltage levels between circuits .

The working principle of a transformer is very simple. Mutual induction between two or more windings (also known as coils) allows for electrical energy to be transferred between circuits.

Specifications:

 Device Name : Electric Arc Transformer

Transformer Type : HSSPZ-120000/33 Oil immersed booster type

Number of phases 3

Rated power 120MVA

Overload  10% continuous overload

Cooling system OFWF

Rated frequency 50 HZ

Primary rated voltage 33kv±5%

Primary max operating voltage 36kv

No-load secondary rated voltage 630V-1170V

Constant current range 630V-990V

Constant power range 990V-1170V

Winding connection Delta/open delta(d/iii)

Rated secondary current 70kA

Rated Primary current 2099.5A

Detail Parameters , Weight and Dimensions Attached

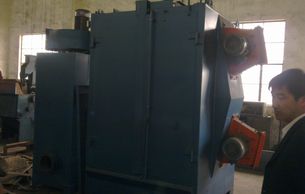

  Steel tube shot blasting machine :-

 can be used for cleaning casting,forging and welding pieces,remove surface inclusions and oxide skin.

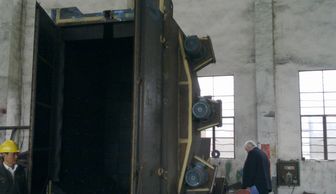

 Steel Tube Shot Blast Machine Feature:

 1.Suitable for ship,car,automobile,bridge,etc. industry2.Cleaning fast3.PLC control system4.3D disign and plasma cutting5.Chamber liner by olling Mn13 steel,at least 2~5 years .


 Water Injection Wellhead Device :-

Used in onshore and offshore developments, water injection involves drilling injection wells into a reservoir and introducing water into that reservoir to encourage oil production. While the injected water helps to increase depleted pressure within the reservoir, it also helps to move the oil in place.

 Specification:-

  • Fixed work stress                   2000 ~ 5000PSI
  • Temperature level                    LU (-46℃ ~ +121℃)
  • Material grade                           AA ~ EE
  • Connection method            Flange, clamp
  • Nominal diameter              29/16"

Contact Us

Mobile:   +86-13661649038

Phone:    +86-21-60484485

Fax     :   +86-21-60484085

We Chat:   +86-13661649038

What App: +86-13661649038

Email:  robin@semcgroup.com

            shanghaielectric@vip.163.com

Back to Home page see all products

Metallurgical equipment

Scrap Baler

furnace scrap conveyor feeding machine

furnace scrap conveyor feeding machine

Scrap Baler Energy saving and high efficiency (differential design)
 Shearing designe

  •  Scrap Baler Energy saving and high efficiency (differential design)
  •  Shearing design
  •  Integrated manufacturing (small and medium-sized)
  •  Low failure rate
  •  Wear resistance
  •  Reasonable self-inspection
  •  Rapid response system

furnace scrap conveyor feeding machine

furnace scrap conveyor feeding machine

furnace scrap conveyor feeding machine

Electric furnace electric arc furnace scrap conveyor feeding machine working in steel mill for scrap

 Electric furnace electric arc furnace scrap conveyor feeding machine

production efficiency is high.

  • Maximum loading  250 ton
  • converyor:  6000*1200*900
  • Length 13000
  • Production Rate 1.5- 250Ton
  • Cutting Frequency 4-5
  • Main Motor 45KW

Large crusher

furnace scrap conveyor feeding machine

Electric arc Furnace Transformer 132MVA

The large crusher of box is large, synchronous compression function materials are compact

 Features:-

The Large crusher of the material box is large, and the range of the material size that can be processed is large.The material box has a synchronous compression function, the processed materials are compact, and the production efficiency is high.

  • Max: Cutting Force  1250 ton
  • Press Box Size  10000*2500*1600
  • Blade Length 2500
  • Production Rate 20- 25 Ton
  • Cutting Frequency 3-4
  • Main Motor  6*45KW

Electric arc Furnace Transformer 132MVA

Electric arc Furnace Transformer 132MVA

Electric arc Furnace Transformer 132MVA

China electric arc transformer
Transformer Type : HSSPZ-120000/33 Oil immersed booster type

 Device Name : Electric Arc Transformer

Transformer Type : HSSPZ-120000/33 Oil immersed booster type

Number of phases 3

Rated power 120MVA

Overload  10% continuous overload

Cooling system OFWF

Rated frequency 50 HZ

Primary rated voltage 33kv±5%

Primary max operating voltage 36kv

No-load secondary rated voltage 630V-1170V

Constant current range 630V-990V

Constant power range 990V-1170V

Winding connection Delta/open delta(d/iii)

Rated secondary current 70kA

Rated Primary current 2099.5A

Detail Parameters , Weight and Dimensions Attached

Furance Rectifier transformer

Electric arc Furnace Transformer 132MVA

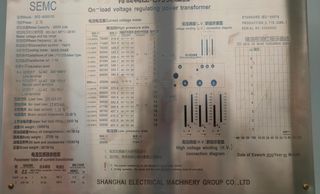

Furance Rectifier transformer

China Furnace Rectifier transformer
The working principle of a transformer is very simple manufactur

  • Furnace Rectifier transformer
  • The working principle of a transformer is very simple.
  • Type of Cooling : MVA ONAN/ONAF: 130/165Insulation Level : KV HV    SI/LI/LIC/AC:1050/1425/1570/630 HVN   LI/AC:325/140LV     LI/LIC/AC:170/187/70Vector group - YN d11Average winding temp. rise K 61Top oil temp. rise : 56 KImpedance % 11.58(±5%)Noise dB 75(sound pressure level)No-load loss kW 125Load loss kW 420Insulation oil weight kg Approx. 68000Transportation weight (with gas) kg Approx. 136000Total weight kg Approx. 228000Outline Dimension (Length x Width x height) mm Approx. 14000 x 8800 x 12200
  • Mutual induction between two or more windings (also known as coils) allows for electrical energy to be transferred between circuits.

Power Transformer 165MVA

Electric arc Furnace Transformer 132MVA

Furance Rectifier transformer

China Power Transformer
Transformer type - SFZ-165000/400
Standard - IEC 60076
Rated power : 165MVA

Device Name : Power Transformer

Transformer type - SFZ-165000/400

Standard - IEC 60076

Rated power : 165MVA

Frequency : 50Hz

Rated voltage : 400/33KV

Number of phase : 3

Number of winding :  2

Tap Changer :  On-load tap changer

Tap Position :  20

Tap Range :  ±10*1.25%

Type of Cooling : MVA ONAN/ONAF: 130/165

Insulation Level : KV

HV    SI/LI/LIC/AC:1050/1425/1570/630

HVN   LI/AC:325/140

LV     LI/LIC/AC:170/187/70

Vector group - YN d11

Average winding temp. rise K 61

Top oil temp. rise : 56 K

Impedance % 11.58(±5%)

Noise dB 75(sound pressure level)

No-load loss kW 125

Load loss kW 420

Insulation oil weight kg Approx. 68000

Transportation weight (with gas) kg Approx. 136000

Total weight kg Approx. 228000

Outline Dimension (Length x Width x height) mm Approx. 14000 x 8800 x 12200

Oil well and drilling equipment

Christmas tree

Anti-sulfur Oil (gas) Wellhead Device

Anti-sulfur Oil (gas) Wellhead Device

The casing head Christmas tree is used to fix the wellhead of the drilling well, connect the bop

 The casing head Christmas tree is used to fix the wellhead of the drilling well, connect the downhole casing string, and reliably seal and control the annular space between the pipes. It is an important part of the oil (gas) wellhead device of the oil field. The casing head is designed with a 45° shoulder to support the weight of the casing string transmitted by the casing hanger, and the bottom can be sealed with a BT type secondary seal

  • The tubing hanger and tubing head reducing flange can be used for direct cable crossing, and can be equipped with downhole safety valve control pipeline interface;
  • The side outlet link is threaded or Planted wire-flange type, and equipped with VR thread, easy to change valve operation .

Anti-sulfur Oil (gas) Wellhead Device

Anti-sulfur Oil (gas) Wellhead Device

Anti-sulfur Oil (gas) Wellhead Device

Anti-sulfur Oil (gas) Wellhead working for bop .christmas tree oil well Blowout preventer oil field

Anti-sulfur Oil (gas) Wellhead Device working for  Blowout preventer oil field


  • Nominal pressure       14
  • Nominal diameter   65
  • Operating temperature        -46℃ ~ 121℃
  • Applicable medium

Natural gas, crude oil, water

  • Specifica   PSL1 ~ 4
  • Performance level  PR1 ~ 2
  • Material grade     AA ~ FF
  • Connection Type  Clamp or flange Grease injection valve port and seal test port are provided;
  • The lower part of the tubing head has a sealing form O-ring seal, grease injection BT seal and metal seal;

Double ram blowout preventer

Anti-sulfur Oil (gas) Wellhead Device

Double ram ring type Cameroon blowout preventer

 Double ram blowout preventer
Double ram ring type Cameroon blowout preventer The tubing head

 Double ram blowout preventer

Double ram ring type Cameroon blowout preventer

 The tubing head and tubing cross are used to hang tubing and seal the annular space of tubing. Its characteristics are as follows:

  • The secondary seal between tubing hanger and reducing flange includes O-ring seal, grease injection BT seal and metal-to-metal seal;
  • The sealing form of the tubing hanger and the tubing head includes metal-to-metal seal, special synthetic rubber seal or metal seal + special synthetic rubber seal;

Double ram ring type Cameroon blowout preventer

Double ram ring type Cameroon blowout preventer

Double ram ring type Cameroon blowout preventer

semc double ram ring type Cameroon blowout preventer Fixed work stress 2000 ~ 5000PS

  • Double ram ring type Cameroon blowout preventer
  • Fixed work stress                   2000 ~ 5000PSI
  • Temperature level                    LU (-46℃ ~ +121℃)
  • Material grade                           AA ~ EE
  • Connection method            Flange, clamp
  • Nominal diameter              29/16"

Double Tubing Tubing Head and valve

Double ram ring type Cameroon blowout preventer

Double Tubing Tubing Head and valve

The tubing head and tubing cross valve are used to hang tubing and seal the annular space of tubing.

 The tubing head and tubing cross valve are used to hang tubing and seal the annular space of tubing. Its characteristics are as follows:
1. The secondary seal between tubing hanger and reducing flange includes O-ring seal, grease injection BT seal and metal-to-metal seal;

2. The sealing form of the tubing hanger and the tubing head includes metal-to-metal seal, special synthetic rubber seal or metal seal + special synthetic rubber seal;
3. Grease injection valve port and seal test port are provided;

4. The lower part of the tubing head has a sealing form O-ring seal, grease injection BT seal and metal seal;
5. The tubing hanger and tubing head reducing flange can be used for direct cable crossing, and can be equipped with downhole safety valve control pipeline interface;
6. The side outlet link is threaded or Planted wire-flange type, and equipped with VR thread, easy to change valve operation .

Thermal wellhead valve

Double ram ring type Cameroon blowout preventer

Double Tubing Tubing Head and valve

 Thermal wellhead valve Gate valve, throttle valve, butterfly valve, stainless steel valve, oil well

 Thermal wellhead valve

Gate valve, throttle valve, butterfly valve, stainless steel valve, oil well valve, blowout preventer valve, oil field valve


  • Maximum working pressure      14
  • Working temperature                          337
  • Connection type                    Flange
  •  Nominal diameter                  φ65×φ65
  • Working medium

Saturated steam, crude oil

  • Mining method                   Single tube

Oil well and drilling equipment ,Shot Blasting Machine

Plunger oil pump

Key Specifications

Key Specifications

Plunger oil pump working  with BOP Blowout preventer pressure 14 made in china manufacturers

Plunger oil pump working  with BOP Blowout preventer

  • Nominal pressure                     14
  • Nominal diameter                     65
  • Operating temperature        -46℃ ~ 121℃
  • Applicable medium

Natural gas, crude oil, water

  • Specifica                                  PSL1 ~ 4
  • Performance level                 PR1 ~ 2
  • Material grade                         AA ~ FF
  • Connection Type               Clamp or flange

Key Specifications

Key Specifications

Key Specifications

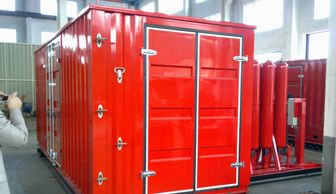

shale desilter, ansyc optimized. Oil well drilling equipment rock bit river sand desilting dredging


  •  Good qualityfunction of shale desilter
  •  ansyc optimized.
  • can be customized.
  •  2 years guarantee.
  • Oil well drilling equipment rock bit river sand desilting dredging vessel solid waste disposal equipmentriver sand desilting dredging vesselkosun desilter for oilfield solids controlfeatures
  •  Made of ... . Use ss304 or q345 high strength alloy made of ... , and high strength compound rubber
  •  made of ... Used to reduce shock.
  •  Vibration motor:. Italy olior martin
  • Electrical control system. :. Huarong brand or helong brand.
  •  Explosion-proof electrical switch.
  • Cones:. Cones adopt high wearing-resisting polyurethane and similar with derrick structure.
  •  Painting:. Heavy anti-corrosion painting

Special Features

Key Specifications

Double ram blowout preventer used in oil field

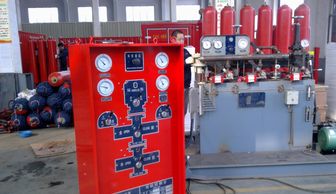

Vibration motor Italy olior martin
Electrical control system. vessel solid waste disposal equipment



  •  Good qualityfunction of shale desilter
  • ansyc optimized.
  • can be customized.
  • 2 years guarantee.
  • Oil well drilling equipment rock bit river sand desilting dredging vessel solid waste disposal equipmentriver sand desilting dredging vesselkosun desilter for oilfield solids controlfeatures
  • Made of ... . Use ss304 or q345 high strength alloy made of ... , and high strength compound rubber
  • made of ... Used to reduce shock.
  • Vibration motor:. Italy olior martin
  • Electrical control system. :. Huarong brand or helong brand.
  • Explosion-proof electrical switch.
  • Cones:. Cones adopt high wearing-resisting polyurethane and similar with derrick structure.
  • Painting:. Heavy anti-corrosion painting

Double ram blowout preventer used in oil field

Double ram blowout preventer used in oil field

Double ram blowout preventer used in oil field

Double ram blowout preventer used in oil field;Steel tube shot blasting machine clear the bop

  • Double ram blowout preventer used in oil field
  •  Steel tube shot blasting machine can be used for cleaning casting,forging and welding pieces,remove surface inclusions and oxide skin.

Shot blasting machine

Double ram blowout preventer used in oil field

Shot blasting machine

Shot blasting machine
Steel Tube Shot Blast Machine Feature:Suitable for ship,car,automobile,bridge

  • Shot blasting machine
  • Steel Tube Shot Blast Machine Feature:
  • Suitable for ship,car,automobile,bridge,etc. industry
  • Cleaning fast
  • PLC control system
  • 3D disign and plasma cutting
  • Chamber liner by olling Mn13 steel,at least 2~5 years .Meanwhile, there are several benefits of shot blasting from removing corrosion to the Surface preparation and most importantly, it is environmentally friendly. Let’s have a look at the advantages of the shot blasting..

Shot blasting machine

Double ram blowout preventer used in oil field

Shot blasting machine

China Shot blasting machine Shot blasting method has become a part of steel structure casting metal



  • Shot blasting machine
  • Shot blasting Method has become a vital part of steel structure and metal building companies. It provides two major benefits which are as follows:
  • It helps to remove all rust, mill scale, and corrosion, thus eliminating moisture which is entrapped beneath these corrosion products.
  • It also provides an ideal surface finish for securing a continuous and effective bond between the steel surfaces.


Copyright © 2021 Shanghai Electrical Machinery Group Co., Ltd. - All Rights Reserved.

Powered by GoDaddy Website Builder

  • Home
