Shainghai electrical manufacture asynchronous slip ring motor 6kv-20kv
110 KW Asynchronous Slip Ring Motor
SEMC Group produce slip motor with 6kv-20kv
Definition: YRKK motor and slip ring motor is referred to as an asynchronous motor as the speed at which it operates is not equal to the synchronous speed of a rotor. The rotor of this type of motor is wound type. It comprises of a cylindrical laminated steel core and a semi-closed groove at the outer boundary to accommodate a 3-phase insulated winding circuit.
Specifications :-
- Power 110KW
- Connection Star
- Voltage 220/380 V
- Rotor Voltage 1474 v
- Altitude 1000 m
- Mount IM1001
- Insulation class F
- Duty S1
- Frequency 50 HZ
- Protection Class IP23
- Power factor 0.85
Contact US
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Email: robin@semcgroup.com
More To Know About Our Three Phase Slip Ring AC Motors
110KW Three Phase Slip Ring AC Motors
2000 KW Slip Ring Three Phase Induction Motor
110KW Three Phase Slip Ring AC Motors
- slip ring motor Power 110KW
- Connection Star
- slip motor Voltage 415v-6kv-10kv-20kv
- yrkk motor Rotor Voltage 1474 v
- Altitude 1000 m
- Mount IM1001
- Insulation class F
- Duty S1
- Frequency 50 HZ
- Protection Class IP23
- Power factor 0.85
Slip-Ring Motor
2000 KW Slip Ring Three Phase Induction Motor
110KW Three Phase Slip Ring AC Motors
slip Ring motor and slip motor is closed wound rotor three-phase asynchronous motor, is the new generation yrkk motor product with updatest design in China. The power class and mounting size of this series motor is applied to the international standard.
2000 KW Slip Ring Three Phase Induction Motor
2000 KW Slip Ring Three Phase Induction Motor
2000 KW Slip Ring Three Phase Induction Motor
- slip motor Power 2000KW
- yrkk motor Voltage 10000V
- Heater 40W/220V (IP)
- slip ring motor Rotor Voltage 2096 v
- Rotor Current 570 A
- Mount IMB3
- Insulation class F
- Ambient Temp -20+40 °C
- Duty S1

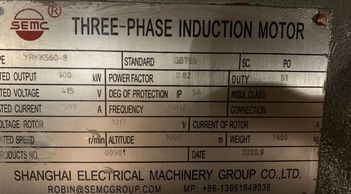

900 KW Slip Ring Three Phase Induction Motor
900 KW Slip Ring Three Phase Induction Motor
2000 KW Slip Ring Three Phase Induction Motor
SEMC Group produce slip ring motor and slip motor with yrkk motor yrkk yks yr type made in china.
- yrkk motor Type YRKK560-8
- slip ring motor power factor 0.82
- slip motor Power 900KW
- Connection Y/Y
- Voltage 415V
- Rotor Voltage 1474 v
- Altitude 1000 m
- Rated current 599 A
- Mount IMB3
- Insulation class F
- Duty S1
- Frequency 60 HZ
- Protection Class IP55
- weight 7850 kg
1120 KW Slip Ring Three Phase Induction Motor
900 KW Slip Ring Three Phase Induction Motor
1120 KW Slip Ring Three Phase Induction Motor
- Standard IEC60034
- yrkk motor Power 1120KW
- Connection Y/Y
- slip motor Voltage 6600V
- Rotor Voltage 1474 v
- Altitude 1000 m
- slip ring motor Rated current 122 A
- Mount IMB3
- Insulation class F
- Duty S1
- Frequency 60 HZ
- Protection Class IP55
SLIP RING MOTOR
900 KW Slip Ring Three Phase Induction Motor
1120 KW Slip Ring Three Phase Induction Motor
F%7DJBRK%5D3%242_1NIC%7DAT7.jpg/:/cr=t:13.24%25,l:0%25,w:100%25,h:73.53%25/rs=w:388,h:194,cg:true/qt=q:1)
Slip ring motor runs on the principle of Faraday’s law of electromagnetic induction. When a slip motor stator winding is excited with an AC supply, the yrkk motor stator winding produces magnetic flux. Based on faraday’s law of electromagnetic induction, the rotor winding gets induced and generates a current of magnetic flux. This induced EMF develops torque that enables the rotor to rotate.
