Produce and hot sell aurora motor NEMA Motors
NEMA Standard (JM/JP) High Efficiency, Premium Efficiency Motors
NEMA electric motor JM/JP TP vhs motor are Three-Phase Induction Electric Motors Single Speed,Dual Speed, Totally Enclosed, Continuous Working Duty, Low Voltage and High Voltage Cage Type which conform to American NEMA MG1 standard and are designed for tight coupling pump. The motors have rigid installing frames and nema frame dimensions JM/JP pump shafts. All series motors adopt casting iron frames, locked-bearing structure at driving end to limit shaft extension axial float.
Rated power: 1~500HP Rated voltage: 230/460V/575V/660V/
Rated efficiency: 50/60Hz, Structure: TEFC (IP54、IP55)
Insulation Grade: F , Frequency Range: 10:1 CT，20:1 V
Temperature Rise: B, Connection Box Position According To NEMA and aurora motor with CSA Certification: Class I, Div. 2, Groups A, B, C & D-T3C（140-320Fr.）/- T3A（360Fr.）
The efficiency meets America NEMA EPACT、NEMA PREMIUM standard, service factor is 1.25. The motor has passed America CC certification and Canada CSA certification.
Contact Us
Mobile： +86-13661649038
Phone： +86-21-60484485
Fax ： +86-21-60484085
We Chat: +86-13661649038
What App: +86-13661649038
Email: robin@semcgroup.com
More to know about NEMA Motors
Premium Efficient NEMA
Premium Efficient NEMA
Premium Efficient NEMA
SEMC group produce and hot sell nema electric motor aurora motor,the nema frame dimensions and specifications :
- Type YHP630-6Th
- Power 850KW
- Power factor 0.85
- Mount IMB3
- Voltage 660V
- Current 216A
- Rated speed 982
- Frequency 50HZ
- Insulation Class F
- Protection Degree IP55
- Number of phases 3
NEMA Standard Motor
Premium Efficient NEMA
Premium Efficient NEMA
Specifications :-
- Nema frame dimensions Frame 449TS
- Nema electric motor Power 300HP
- Power factor 0.9
- Service factor. 1.0
- Mount IMB3
- Voltage 230V 380V 460v according aurora motor
- Current 406A
- Rated speed 1700r/m
- Frequency 60HZ
- Insulation Class F
- Protection Degree IP55
- Number of phases 3
NEMA Explosion Proof
Premium Efficient NEMA
NEMA Explosion Proof
Nema frame dimensions Specifications :-
- Nema electric motor Type JMB3-315M-4
- Power 32KW/180hp produce according aurora motor
- Power factor 09
- Mount IMB3
- Voltage 380V/400V/415V
- Current 216A
- Rated speed 1488 r/m
- Frequency 50HZ
- Insulation Class F
- Protection Degree IP55
- Number of phases 3
NEMA VHS Motor
Name Plate of NEMA VHS
NEMA Explosion Proof
- Vertical Hollow Shaft nema electric motor nema frame dimensions and aurora motor specification:
- NEMA standard, Model VHS160 to 280
- Power : 15HP ~ 300HP
- Protection Class : IP23,IP44,IP54,IP55
- Insulation :F, Class B

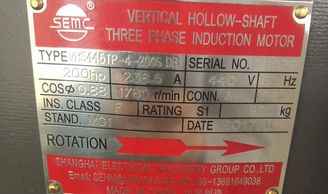

Name Plate of NEMA VHS
Name Plate of NEMA VHS
Name Plate of NEMA VHS
- Nema electric motor aurora motor VHS MOTOR produce by nema frame dimensions and NEMA standard,
- Model:VHS445TP-4-200s 200HP
- Input:440V,60HZ,Insulation F
- Export to USA,MEXICO,Europe.
Shaft of NEMA VHS
Name Plate of NEMA VHS
Name Plate of NEMA VHS
- nema electric motor and aurora motor made in china,these vertical motor design and produce according nema frame dimensions.
- Shaft Of 175HP VHS motor
- Power: 175HP, Current= 210.5A
- Voltage= 400V
- Frequency= 50Hz, P.F= 0.88
- Insulation Class= F, Duty= S1
- Speed= 1780rev/min
