Short press and Morgen hot Rolling Mill produce rebar angel bar wire rod

Steel rolling mill Basic Specifications

• Billets 150*150x6m*12m
• Finished product:φ10-φ32,
• Maximum speed: 90m/s,
• Annual output: 500 000tons

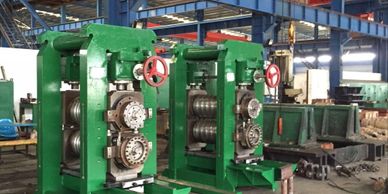

• Rough hot rolling mill Rolling Group : 1H, 2V, 3H, 4V, 5H, 6V, 7H, 8V
• Middle Rolling Group : 9H, 10V, 11H, 12V
• Finished Rolling Group : 13H, 14V, 15H, 16V, 17H, 18V
• Shearing machines
• With closed traverse, Morgan model, capable of quickly changing roller type drums containing the cardan shaft and the bracket.

steel rolling mill 450 flywheel

• hot rolling mill 450 Three High Mill  450 * 1300
• Flywheel  1800 x270
• Cardan shaft   Φ 400*1200
• Reducer   ZD 80 ; I=2
• Reducer   ZD 110 I=4.5
• Transmission gear  A450
• Main motor  YR700-12   1250KW
• Roller  Comprehensive Model
• Cooling bed  Simple
• Baler Pinto Agency
• Flying shear  Start-Stop

Master Equipment of Rolling Machinery

• Rolling mill Charging roller : φ219x1000 v=2m/s
• Roughing mill entry roll table : roller table+tilting plate
• Discharge machine, 550 three-roller mill series
• Lifting platform : Effective size 1300x8500
• Front roll gang of middle mill,
• Hot rolling mill 400 double duo mill, 350 double duo mill series
• Steel rolling mill 280 double duo mill series,
• Bar slot walking cold bed, Finishing roller table
• Flapper, Bar steel moving rack,
• Bar bundling vibrator rack,Fixed dam
• Wire rod collecting system
• Auxiliary equipment of rolling machinery
• Motor and transformer
• Electrical control equipment

 Rolling equipment

• Hot rolling mill 450mm Rolling Mill : 450 three-high rolling mill maximum roll diameter 450, Reducer: Herringbone tooth profile, soft and hard tooth surface gear transmission.
• Steel rolling mill 280 finishing mill train : Roll diameter φ280～φ300, roll body 600, two rolling mills driven by a motor; horizontal two-roller open type, upper roll fixed, lower roll adjustable roll gap, axial roll shift, herringbone tooth profile, soft and hard teeth Face gear transmission
• Conveying roller table after billeting : Roll diameter 203mm, roll body 600mm, roll distance 1000mm, total length 20000mm
• Conveyor roller table after cut : Φ218×900 pitch 1156mm speed 1.825m/sec motor 7.5KW
• Reducer XWD7.5-6-1/9 i=9 Cylinder model QGBⅡ200×160-MT4
• Flying shear : Start-stop working system, double-length segmentation, set between finished rolling mill and cooling bed
• Lubrication system

• Rolling mill 325 Machine Train
• Hot rolling mill 325 Two-High Mill  350x600
• Reducer  Compound
• Cardan Shaft   ∮325
• Main motor   YR630-12  1000KW

Steel rolling mill 280 Machine Trains

• 280 Two-High Mill   280x500
• Main motor  YR630-12  1250KW

Ancillary Equipment

• Roller  Comprehensive Model
• Cooling bed  Simple
• Baler Pinto Agency
• Flying shear  Start-Stop
• Mechanical equipment before and after heating furnace
• Rolling area mechanical part (Morgan mill)
• Middle Rolling Area
• Finished Rolling Area
• Drum type universal shaft
• Hardened reducer
• Billet Heating furnace and auxiliary equipment set
• Cooling bed
• Wire rod line

• Hot rolling mill Motor:JR type 185KW
• Distribution starting cabinet
• 3)Ф1200 mm flywheel (caststeel)
• 4)ZD60 reducer
• 5)Ф220 three-axis box
• 6)Rolling Mill with roller
• 7) Steel rolling mill Roll ∮240mm×550mm steel roll 3 pieces ∮240mm×500mm nickel chromiumm oly bdenum infinite cold hard
• 8)Connection part 1.5tons
• 9)Discharging roller table group II 6m×2=12m
• 10)280KVA transformer
• 11)head cutting machine
• 12)Finished product conveying roller table 6m×8=48m8
• 13)Simple cooling bed 3m×24m(on-site production)
• 14）Wire rod collector
• 15)D.Equipment area:18000mm×74000mm

• Rolling mill Wire rod type automatic packing bundling machine with SIEMENS PLC control panel,
• Four modes:single. double, square、loose.
• Hot rolling mill Used to round steel, rebar, flat steel, and angle steel
• Tightening force 9KN Bundling specification 6.3-8mm
• Steel rolling mill Bar bundle size Φ150-550mm; Valve voltage 21V
• Bundle wire material Steel wire Q195, Q235;
• Diameter of the inner ring of the line Φ700 Motor
• power 11KW Bundling cycle 7s
• Hydraulic system pressure 100bar Pump capacity 100l/m

• Steel rolling mill Automatic Tmt Rebar (Wire Tying Type) Bundling Machine working in hot rolling mill factory
• Model:KNCA-8/800- K8209-02-A
• Total Weight：4050KG
• Bundling line specification: φ7.0+1/-0.7mm
• Motor voltage:380VAC,50HZ Valve voltage:24VDC Switching voltage:24VDC
• Tying Wire 5.5 – 7MM Wire Recommended
• Material Annealed (Q195)
• Wire Guide System φ=800mm. Tying Cycle For Single bind, about 7s
• Working Pressure of Hydraulic Oil 15Mpa
• Flow Rate of Hydraulic Oil 100 L/Min

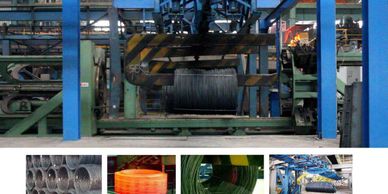

• Hot rolling mill Automatic wire horizontal baler
• Mainly used for fully automatic strapping of metallurgical high-speed steel rolling mill wire coils. It can compress the coils hung on the C-hook, and automatically wrap and bind the coils with a binding line while pressing the coils.
• Packing pass 4
•  Compression force 60-400KN Bundling specification 6.3-8mm
• Effective opening 4700mm Minimum opening 620mm
• Bundled wire material Q195, Q235
• Coil outer diameter Φ1400mm Coil inner diameter Φ850mm Packing cycle 32s
• Coil weight 2200kg C-hook maximum length 4300mm

• Steel strapping bundling machine working for hot rolling mill rebar in steel rolling mill workshop.

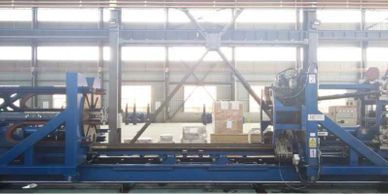

• Rolling mill Automatic steel belt horizontal baler
• Packing pass 4
• compression force 60-400KN
• strap specification 32mm
• Effective opening 4700mm minimum opening 620mm
• strap thickness 0.8-1.0mm
• Coil outer diameter Φ1400mm Coil inner diameter Φ850mm
• Strapping material steel
• Coil weight 2200kg C-hook
• maximum length 4300mm
• Packing cycle 32s

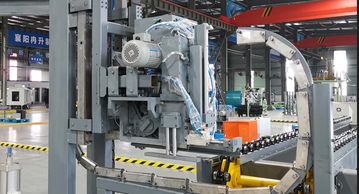

• Rolling mill Vertical steel belting type strapping bundling machine with SIEMENS PLC system;
• Steel rolling mill Working for automatic TMT rebar and steel pipe package
• Hot rolling mill Bundle Size : 8, 10, 12,16, 22, 25, 32, 36mm
• Bundle Diameter : 150 # 400m
• Bundle Weight : 1000 # 4000 Kg
• Power Supply: 380V, AC; Power: 3.0 KW Air : Pressure, 5 bar
• Instantaneous Air Consumption Max: 0.9 L/S
• Bundle Size : 12-20 mtr Long, Struck 2 times (Two Layer)
• Dia mtr of Bundle 180-400mm,
• Strike time is 14 seconds, and the

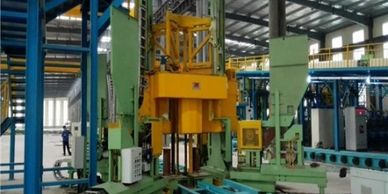

• Rolling mill Fully automatic wire rod vertical baler
• vertical core frame transportation system and has the
• Packing pass 4
• Compression force 60-400KN

Steel rolling mill Bundling specification 6.3-8mm

• Effective opening 3700mm, minimum opening 550mm
• wire binding material Q195, Q235;Coil outer diameter Φ1250mm Coil inner diameter Φ850mm
• Hot rolling mill Packing cycle 35s
• Coil weight 2200kg Core holder height 3300mm
